CBN/Borazon Bonded Mandrels

Head diameters are smaller than the shank. Undercuts are usually required. Special mandrel sizes, grits, and shapes can be provided per your specifications. Additional charges apply. Diamond and Borazon mandrels are not a stock item. Please call our sales representative for delivery times.

Diamond Bonded Mandrels

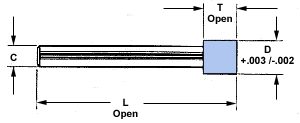

Grit Size	Wheel No.	D	T	C	L	Net Price
180	B10	.032-.048	.093	.125	1.50	$22.00
	B11	.049-.080	.093	.125	1.50	$18.75
	B12	.081-.090	.125	.125	1.50	$17.50
	B13	.093	.125	.125	1.50	$16.75
	B14	.093	.187	.093	2.00	$17.75
150	B15	.115	.187	.093	2.00	$17.75
	B16	.125	.187	.093	2.00	$17.75
	B17	.125	.250	.093	2.00	$18.00
	B18	.125	.250	.125	2.00	$19.50
	B19	.156	.187	.093	2.00	$18.25
	B20	.156	.250	.125	2.00	$19.75
	B21	.187	.125	.125	2.00	$18.00
	B22	.187	.187	.125	2.00	$18.75
	B23	.187	.250	.125	2.00	$20.25
	B24	.187	.250	.187	2.50	$22.75
	B25-S	.218	.250	.125	2.00	$20.75
	B25	.250	.125	.125	2.00	$19.50
	B26	.250	.250	.125	2.00	$21.00
	B27	.250	.250	.187	2.50	$23.50
	B28	.250	.250	.250	2.50	$26.50
	B29	.281	.250	.125	2.00	$24.00

Grit Size	Wheel No.	D	T	C	L	Net Price
150	B30	.281	.250	.187	2.50	$26.50
	B31	.312	.250	.187	2.50	$27.75
	B32	.312	.312	.187	2.50	$28.75
	B33-S	.343	.312	.187	2.50	$30.50
	B33	.375	.125	.187	2.50	$26.25
100	B34	.375	.250	.187	2.50	$31.50
	B35	.375	.375	.187	2.50	$34.00
	B36	.375	.375	.250	2.50	$37.00
	B37-S	.437	.375	.250	2.50	$43.50
	B37	.500	.125	.187	2.50	$30.75
	B38	.500	.250	.187	2.50	$38.50
	B39	.500	.375	.250	2.50	$51.75
	B40	.500	.500	.250	2.50	$63.50
	B41-S	.562	.375	.250	2.50	$56.00
	B41	.625	.250	.250	2.50	$62.50
	B42	.625	.375	.250	2.50	$72.50
	B43	.750	.250	.250	2.50	$76.00
	B44	.750	.375	.250	2.50	$105.00
	B45	1.00	.250	.250	2.50	$131.00
	B46	1.00	.375	.250	2.50	$191.00
	B47	1.00	.375	.375	3.00	$195.00
